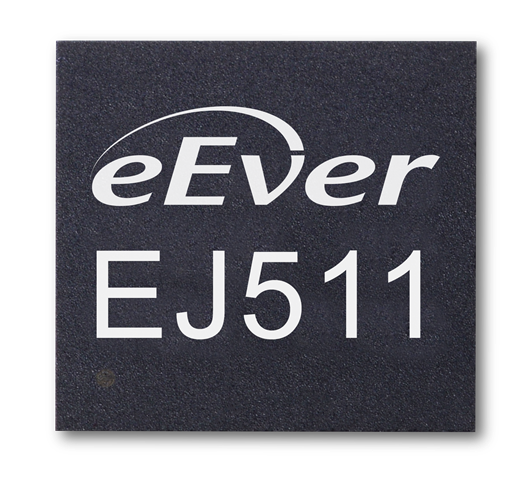

EJ511

產品說明



Video Communicaiton Processor

  • Introduction
  • Features

EJ511 is an USB 3.0 capture IC supporting 1080p/60fps full high definition video through RGB and I2S inputs. When EJ511 connects to USB 2.0 platform, it can support MJPEG compression to provide high video quality on USB 2.0 limit bandwidth.
EJ511 can record original contents from various sources such as smart device, camcorder, set-top box, DVD/BD player and game console.
EJ511 uses OS native UVC and UAC drivers and is compatible with Microsoft Windows, Mac OS and Linux. It can fit in different media capture and streaming applications. It is the optimal solution for capturing high definition videos and postproduction.






  • USB3.0 Video and Audio Device
    • Supports standard UAC and UVC drivers
    • Supports video resolution up to 1920x1080 @60Hz
    • Supported audio sample rates: 32kHz, 44.1kHz and 48kHz
    • Digital video input interface: RGB 24-bit, Hsync, Vsync, Data Enable
    • Digital audio input interface: I2S
  • Supported Endpoints
    • UVC_EP supports UVC drivers
    • UAC_EP supports UAC drivers
    • MSC_EP and INTR_EP support flexible data transfer
  • Supports In System Programming (ISP) Firmware Update
    • SPI and I2C EEROM update by USB port
  • One USB3.0 Device Port
    • Embedded crystal technology
    • Low power SuperSpeed PHY technology


Introduction

EJ511 is an USB 3.0 capture IC supporting 1080p/60fps full high definition video through RGB and I2S inputs. When EJ511 connects to USB 2.0 platform, it can support MJPEG compression to provide high video quality on USB 2.0 limit bandwidth.
EJ511 can record original contents from various sources such as smart device, camcorder, set-top box, DVD/BD player and game console.
EJ511 uses OS native UVC and UAC drivers and is compatible with Microsoft Windows, Mac OS and Linux. It can fit in different media capture and streaming applications. It is the optimal solution for capturing high definition videos and postproduction.



Features



  • USB3.0 Video and Audio Device
    • Supports standard UAC and UVC drivers
    • Supports video resolution up to 1920x1080 @60Hz
    • Supported audio sample rates: 32kHz, 44.1kHz and 48kHz
    • Digital video input interface: RGB 24-bit, Hsync, Vsync, Data Enable
    • Digital audio input interface: I2S
  • Supported Endpoints
    • UVC_EP supports UVC drivers
    • UAC_EP supports UAC drivers
    • MSC_EP and INTR_EP support flexible data transfer
  • Supports In System Programming (ISP) Firmware Update
    • SPI and I2C EEROM update by USB port
  • One USB3.0 Device Port
    • Embedded crystal technology
    • Low power SuperSpeed PHY technology
